Concrete foundation anchor

---

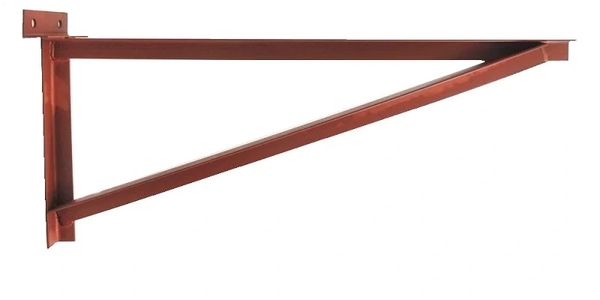

At Spence Canadian Concrete, we’re proud to offer Engineered Metal Concrete Foundation Support Brackets—a versatile and robust solution for supporting a wide range of structures, from precast steps and decks to sidewalks, garages, and more. Manufactured right here in Calgary, these brackets are designed with precision and fabricated to meet the highest engineering standards, ensuring that your project is built on a foundation of strength and reliability.

Our Foundation Support Brackets are available in multiple sizes, ranging from 1 foot to 10 feet, making them suitable for a variety of installation situations. Whether you need to support a front porch, a side deck, or a rear garage, these brackets provide the flexibility and functionality you need.

• Lightweight Yet Strong: Despite their lightweight fabrication, these brackets are engineered to handle significant loads, making them perfect for applications on the front, side, or rear of a home.
• Multiple Sizes Available: The brackets come in a variety of lengths, from 12 inches to 120 inches, allowing you to choose the perfect size for your specific project needs.

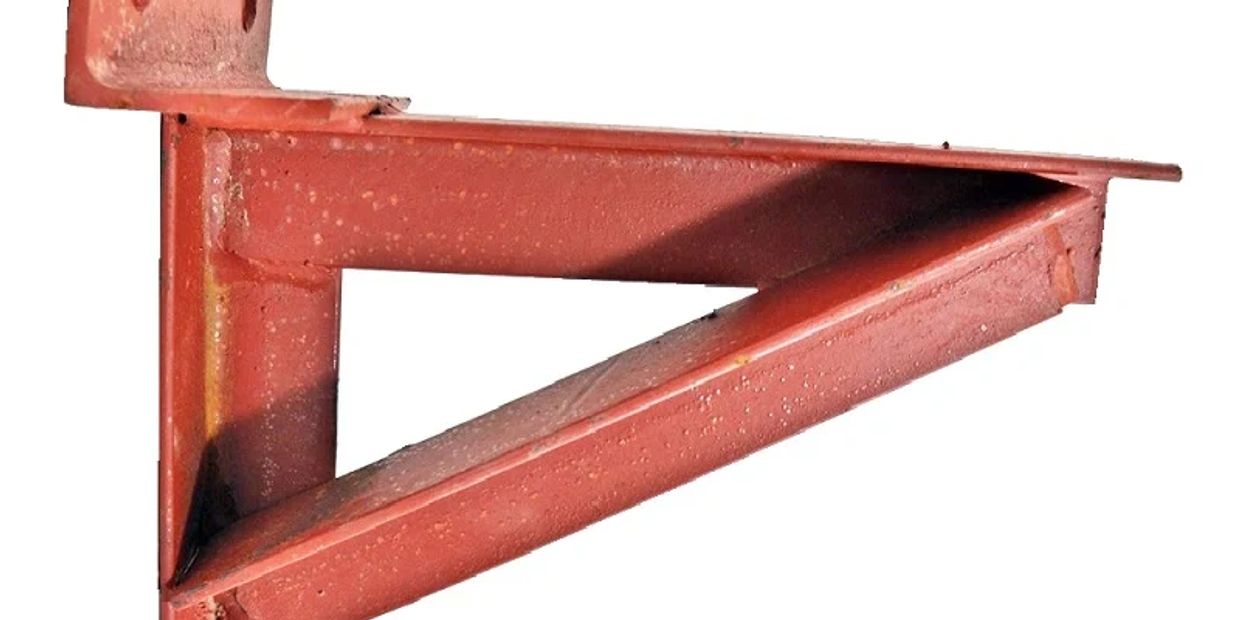

Each bracket is constructed using 3/16" x 2" x 2" angle iron for sizes up to 8 feet, and 3/16" x 2.5" x 2.5" angle iron for the 9-foot and 10-foot sizes. This ensures that the brackets can withstand heavy loads and provide reliable support for years to come.

• Durable Construction: The sturdy angle iron construction offers excellent load-bearing capacity, with support weights ranging from 6,400 lbs for the smaller brackets to 525 lbs for the larger ones.
• Rust-Resistant Finish: Each bracket is treated with a rust-resistant primer, ensuring long-term durability even in challenging environments.

Our Concrete Foundation Support Brackets are designed with ease of installation in mind. Each bracket features an 8-inch flange on top, equipped with two 3/4" diameter holes spaced 5 1/2" apart. These holes are designed to accommodate 5/8" wedge anchors (sold separately), providing a secure and stable attachment point for your structure.

• Secure Mounting: The 8-inch flange allows for strong and stable mounting using the appropriate wedge anchors, ensuring that your foundation is solid and dependable.
• Flexible Applications: These brackets are ideal for supporting sidewalks, pads, garages, cantilevers, decks, pillars, and other features that require strong foundational support.

We take pride in the fact that all of our Concrete Foundation Support Brackets are manufactured in our WCB-certified welding shop in Calgary. Each bracket is produced according to strict engineering specifications, ensuring that they meet the highest standards of quality and performance.

• Locally Manufactured: Our brackets are made right here in Calgary, supporting local industry and ensuring that you receive a product that is crafted with care and expertise.
• WCB Certified: Our welding shop is WCB certified, providing an extra layer of assurance that our products are made to the highest safety and quality standards.

Whether you’re working on a residential or commercial project, Spence Canadian Concrete’s Engineered Metal Concrete Foundation Support Brackets offer the strength, versatility, and reliability you need. With a range of sizes and support capacities, these brackets are designed to handle even the most demanding applications, providing a solid foundation for your project.

• Material: 3/16" x 2" x 2" angle iron (1' to 8' brackets) and 3/16" x 2.5" x 2.5" angle iron (9' and 10' brackets)
• Finish: Rust-resistant primer
• Flange: 8" with 2 holes (3/4" diameter)
• Support Weight: Ranges from 6,400 lbs (1' to 2' brackets) to 525 lbs (10' bracket)

Please Note: 5/8" drill bit, 5/8" x 5" wedge anchor, and 5/8" x 6" wedge anchor are sold separately.

These Engineered Metal Concrete Foundation Support Brackets are the perfect complement to Spence Canadian Concrete's other building systems, ensuring that your foundations are not only built to last but are also capable of supporting the weight and demands of any project. Choose Spence Canadian Concrete for products you can trust, designed to keep your structures standing strong for years to come.
